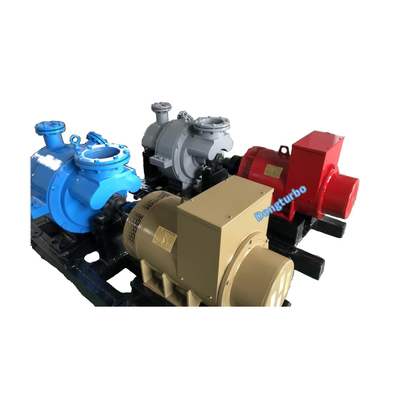

Mini Steam Turbine Generator Set 30KW Model N0.03-1.0
Dongturbo Electric Company Ltd. is a professional manufacturer of small and medium-sized back pressure steam turbines and condensing steam turbines. The industrial steam turbines produced by the company can be classified into two types: industrial-driven steam turbines and industrial power-generating steam turbines. In the petroleum, chemical, electric power, metallurgy, building materials, textile and other industrial sectors and enterprises self-supplied power stations, regional cogeneration, waste heat power generation, garbage power stations, olefin-vapor combined cycle.
5KW, 10KW, 20KW, 25KW, 30KW, 50KW, 100KW, 150KW, 200KW, 300KW, 500KW, 1000KW, 2000KW, 3000KW, 4000KW, 5000KW condensing steam turbine for power generation.
Parameters for Mini Steam Turbine Generator Set 30KW Model N0.03-1.0
|
No. |
Item |
Data |
Remarks |
|
1 |
Steam Turbine Type |
N0.03-1.0 |
|
|
2 |
Rated Output |
30KW |
|
|
3 |
Steam Turbine Rated Speed |
3000r/min |
|
|
4 |
Inlet steam pressure |
1.0MPa |
Absolute pressure |
|
5 |
Inlet Steam Temperature |
180℃ |
|
|
6 |
Direction of rotation |
Counter clock wise from pump side |
|
|
7 |
Rated Flow |
<13t/h |
|
|
8 |
Arrangement Model |
Single layer |
|
|
9 |
Steam Turbine Noise |
≤85 bd |
|
Our advantages:
1. With a steam turbine manufacture experience of more than 20 years.
2. We offer turnkey service, including project design, production,construction, installation, and adjustment.
3. Low steam consumption rate, high efficiency to help customer save cost.
4. Strong overload capacity, easy to operate, safety guaranteed
5. We offer customed products.
Application
1) Cogeneration: high thermal efficiency, widely used in brewing, sugar refining, pharmaceutical, textile, printing and dyeing, chemical fertilizer, chemical, regional heating and other industries.
2) Waste heat and energy utilization: steel blast furnace gas, metallurgy sintering waste heat, waste heat at the cement kiln head and inlet, glass kiln waste heat, chemical kiln waste heat, coking waste heat, gas turbine waste heat and other waste heat and waste energy.
3) Biomass power generation: wood chip, straw, leaves, husks, furfural residue, bagasse, palm shell and ordinary trash, etc. can be used for power generation.
4) Other fields: low concentration mine gas, coal slime, saturated steam, etc.
5) Industrial drives: energy-saving substitute for electric motor. Widely applied in the petrochemical industry, directly driven air blowers, compressors, and other highly energy-intensive equipment.
